Die Mounted Cam Unit

Available with widths from 52 to 400 mm, the die mounted cams guarantee an easy setup. In the OMCR die mounted cams range you will find the answer to your needs cutting / drilling / bending. For more information go to the “Cam Search” page and download technical information from “Download” section.

  • Die Mounted Cam Unit DHC Die Mounted Cam Unit DHC 22/07/2019
    Download (3,3Mb)
    DHC die mounted cam units are suited to make heavy drilling and flanging workings thanks to the structure in spheroid cast iron. They are characterized by easy maintainability thanks to the use of wear plates self-lubricating and steel on the most stressed slidings. Eight models with work forces from 38 to 480kN. Slider widths from 52 to 400 mm, work angle 0° for 52, 200, 250, 300 and 400 mm widths, work angles from 0° to 20° (5° steps) for 65, 100 and 150 mm widths. Extraction by gas spring.
  • Die Mounted Cam Unit DLC-DLCA Die Mounted Cam Unit DLC-DLCA 22/07/2019
    Download (2,2Mb)
    DLC/DLCA die mounted cam units are suited to make medium-light drilling and flanging workings. Seven models with work forces from 30 to 189 kN. Slider widths from 52 to 300 mm, work angle 0° for 52, 200, 250 and 300 mm widths, work angles from 0° to 20° (5° steps) for 65, 100 and 150 mm widths. Extraction only by coil spring.

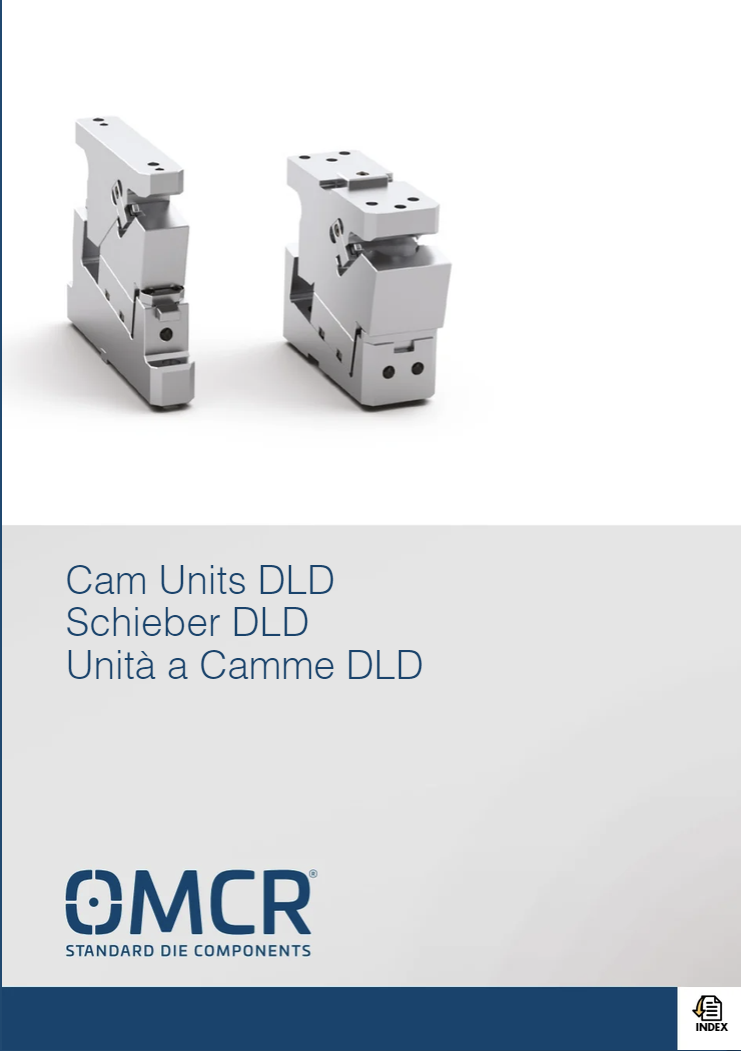

  • Die Mounted Cam Unit DLD Die Mounted Cam Unit DLD 22/07/2019
    Download (0,5Mb)

    DLD die mounted cam are suited to make medium-light drilling. They are not suited for flanging operations. Two models with work force of 40 to 79 kN. Widths from 52 to 90 mm, working angle from 0 ° to 20 ° (5° steps) for 52 mm  width and working angle from 0 ° to 15 ° (5° steps) for 90 mm width. Extraction only by coil spring.
